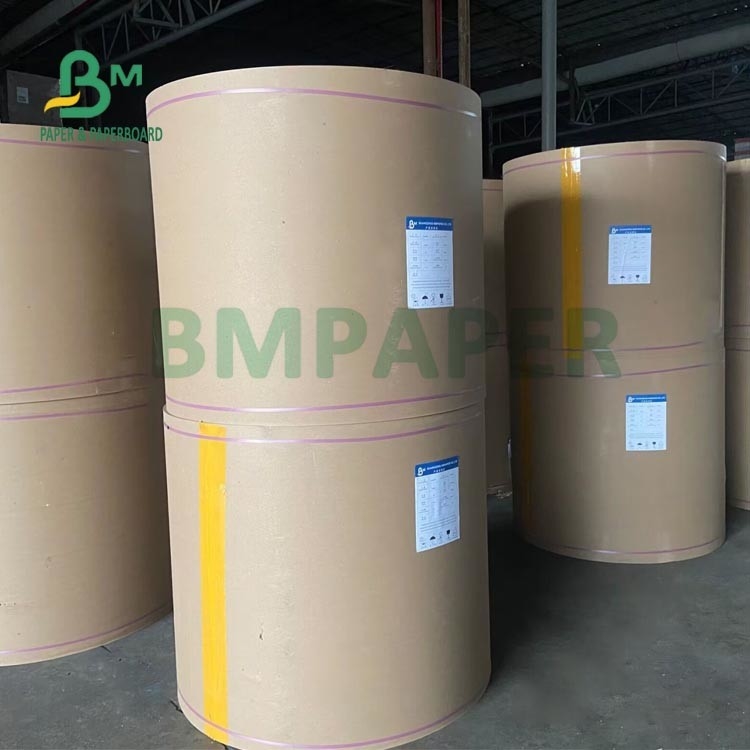

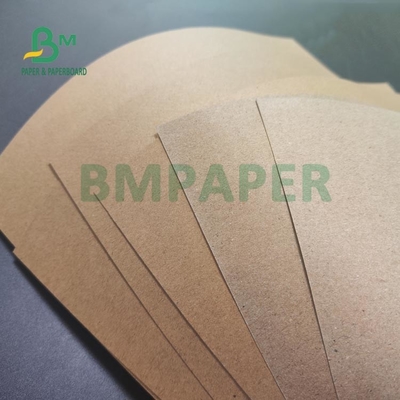

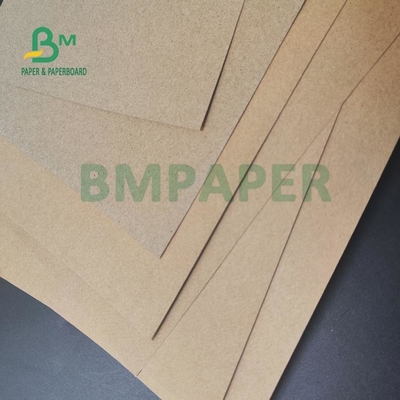

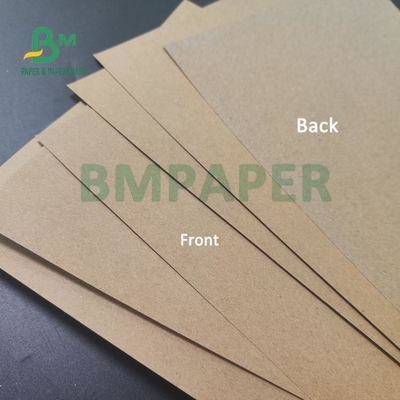

Product Details:
|
Product Name: | Brown Test Liner | Grammage: | 110gsm |
---|---|---|---|
Roll Size: | 120cm | Sample: | Free In A4 |
Raw Material: | Recycled Pulp | Use: | For Carton Boxes |
Highlight: | 110gsm Brown Test Liner,High Strength Brown Test Liner,Recycled Pulp Brown Test Liner |
|
||||||||||
Physical Properties | Unit | 90 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | |
Grammage | g/m2 | Target | 90±3 | 110±4 | 120±5 | 130±5 | 130±5 | 150±6 | 160±6 | 170±6 |
Density | g/m3 | Minimun | 0.7 | 0.70 | 0.70 | 0.70 | 0.70 | 0.70 | 0.7 | 0.7 |
Bursting Index Strength |
Kpa.m2/g (kgf/cm2) |
Minimun | 3.20 | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 |
2.94 | 2.92 | 3.18 | 3.45 | 3.71 | 3.98 | 4.24 | 4.51 | |||
RCT(CD) Strength | N.m/g (Kgf/152mm) |
Minimun | 6 | 6.5 | 6.8 | 7.3 | 7.8 | 7.8 | 7.8 | 7.8 |
8.37 | 11.09 | 12.65 | 14.71 | 16.93 | 18.14 | 19.35 | 20.56 | |||
COBB(top/back) | g/m2 | Maximum | 50/100 | 50/100 | 50/100 | 50/100 | 50/100 | 50/100 | 50/100 | 50/100 |
Folding Endurance (CD) | 次 Time | Minimun | __ | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Smoothness | S | Minimun | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
Internal Bond | J/m2 | Minimun | 150 | 150 | 150 | 150 | 150 | 160 | 160 | 160 |
Moisture | % | Target | 8±2 | 8±2 | 8±2 | 8±2 | 8±2 | 8±2 | 8±2 | 8±2 |
1) High Strength Recycled Pulp from Bmpaper
2) Handling high speed converting
3) Stable product with excellent runnability on the corrugator
4) Uncoated surface, suitable for printing
5) Accurate size cutting edges
We have advantages in price and quality control
